Mini US Standard AC Charging Pile – Basic Version

Product Overview

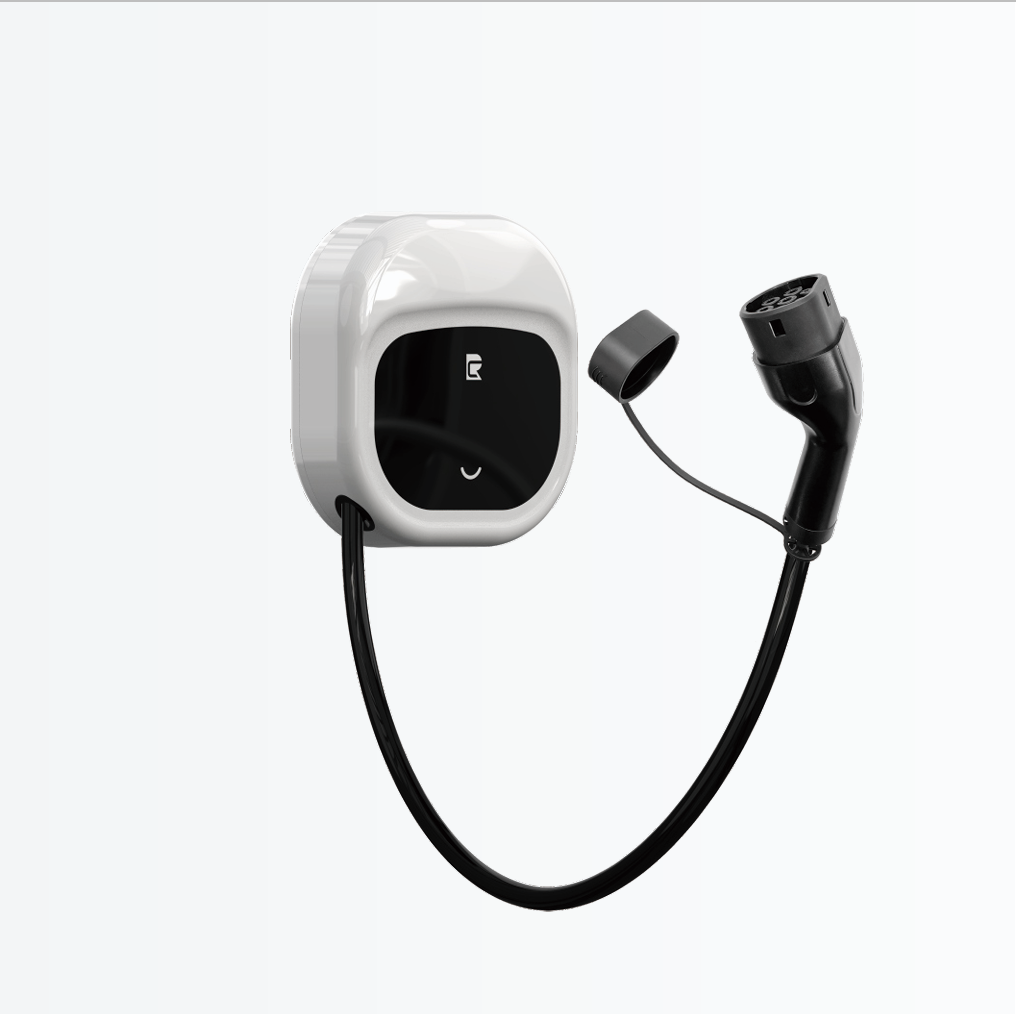

The Mini US Standard AC Charging Pile – Basic Version is the most compact member of the Mini series: a small wall- or pillar-mounted AC charging station for homes, small businesses and residential developments. It charges Type 1 (SAE J1772) vehicles at 16A/3.5kW from a single-phase AC100–240V supply and uses RFID card swipe for controlled access.

With a pure-white 220×220×65mm enclosure and a standard 5-metre cable, the Basic Version is the entry point of the Mini range – the right choice where a straightforward, low-cost, RFID-controlled unit is enough. It is built in our IATF 16949-certified Wenzhou factory on our own PCBs and can be tailored for OEM/ODM orders.

Key Features & Advantages

Compact 220×220×65mm Enclosure

The Mini Basic Version uses a small pure-white housing that mounts neatly on a wall or pillar, keeping the installation discreet in garages, car ports and small commercial bays. Its 237×54×65mm Type 1 gun stores on the unit between sessions.

3.5kW / 16A Type 1 Charging

The pile delivers 3.5kW at 16A through a Type 1 (SAE J1772) interface, with a single-phase AC100–240V input covering both 110V and 230V supplies. This makes it the entry-level power tier of the Mini range, best suited to overnight and destination charging.

RFID Card Swipe Access

Access is controlled by RFID card swipe, so a site can limit charging to authorised users without a network connection. This suits shared parking and small multi-user installations.

IP55 Wall or Pillar Mounting

Rated IP55 and operating from -30°C to +50°C, the unit can be wall- or pillar-mounted indoors or outdoors. Cable length is 5 metres as standard and can be adjusted for volume orders.

Eight-Layer Safety Protection

Leakage, overvoltage, undervoltage, overcurrent, grounding, overtemperature, emergency-stop and short-circuit protection are built in, using our in-house PCB design.

Technical Specifications

Parameter	Value
Parameter	Value
Product Model	CREVB-JT2P116, CREVB-JT2P132
Charging Pile Dimensions	220mm(L)*220mm(W)*65mm(H)
Charging Gun Dimensions	237mm(L)*54mm(W)*65mm(H)
Charging Pile Color	Pure White
Charging Plug Type	Type 1 US Standard
Input Frequency	50Hz/60Hz
Operating Temperature	-30°C~+50°C
Protection Level	IP55
Charging Cable Length	Standard 5m (customizable length)
Installation Method	Wall-mounted / Pillar-mounted
Rated Voltage	AC100-240V
Rated Current	16A
Rated Power	3.5kW
Application Scenario	Personal, enterprise, real estate, etc.
Charging Mode	Standard: RFID Card Swipe Charging
Safety Design	Leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, short circuit protection

Application Scenarios

Home and Small-Business Charging

Households and small businesses can add a compact, RFID-controlled charging point without a large installation footprint. The 3.5kW output suits overnight charging of Type 1 vehicles.

Residential Development Deployments

Property managers can fit the Basic Version where a low-cost, access-controlled unit is sufficient, keeping higher-spec Mini variants for sites needing more power or connectivity.

Distributor Entry-Level SKU

For distributors, the Basic Version is a simple, price-competitive pile to stock alongside related models such as the Dianniu US Standard AC Charging Pile. Browse the full EV charging piles range.

Frequently Asked Questions

Q: How does the Basic Version differ from other Mini versions? A: The Basic Version is the entry point of the Mini range, offering 3.5kW/16A Type 1 charging with RFID card swipe access and no networking. Higher-spec Mini variants serve sites that need more power or connected management.

Q: Which vehicles can charge with this pile? A: It uses the Type 1 (SAE J1772) connector for Type 1 vehicles, with a single-phase AC100–240V input covering both 110V and 230V supplies.

Q: Which vehicles and supply voltages does it accept? A: Branded CREVCC piles start at a 50-unit MOQ and OEM/private-label builds at 100 units. Expect a lead time of around 30–45 days and a 24-month standard warranty.

Request a Quote

For homes, small businesses and residential projects, the Mini US Standard AC Charging Pile – Basic Version offers compact 3.5kW Type 1 charging with RFID access at factory-direct pricing. Contact us with your target configuration and branding needs for pricing and lead time.
