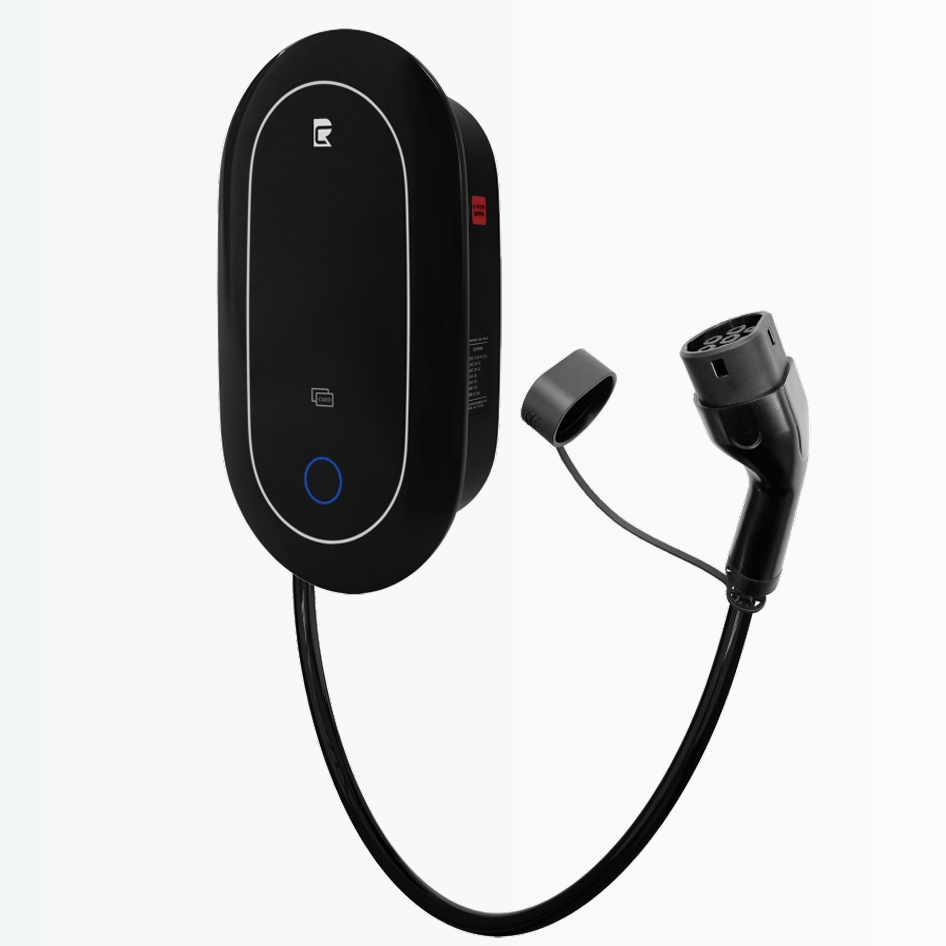

Dianniu EU Standard AC Charging Pile – Basic

Product Overview

The Dianniu Series EU Standard AC Charging Pile — Basic Version is ChuangRui’s mid-range commercial-grade wallbox for Europe, rated 7.2kW single-phase or 22kW three-phase at 32A. Its durable 360mm × 203mm × 100mm enclosure in Magic Night Black is built for sites that see frequent, daily use.

Aimed at businesses, fleet operators, property developers and distributors, the Dianniu pairs a Type 2 (IEC 62196-2) connector, a standard 5m tethered cable, RFID card-swipe activation and eight electrical safety protections. It is a practical step up from entry-level units for buyers needing more power and a tougher build, manufactured in our IATF 16949-certified Wenzhou factory.

Key Features & Advantages

7.2kW Single-Phase & 22kW Three-Phase Output

The Dianniu covers a 7.2kW single-phase AC230V model and a 22kW three-phase AC480V model, both at 32A, serving homes, offices and heavier commercial loads. See our single-phase vs three-phase buyer’s decision framework for selection help.

Durable Magic Night Black Enclosure

The 360mm × 203mm × 100mm housing is finished in Magic Night Black and built for high-traffic environments such as depots and commercial car parks, with a larger body for better heat dissipation.

Type 2 (IEC 62196-2) Connector

Supplied with the Type 2 connector used across Europe and a standard 5m tethered cable, the Dianniu works with the mainstream EVs and PHEVs your customers drive.

RFID Card-Swipe Activation

Charging is started and stopped with an RFID card, giving site owners simple access control without internet connectivity or back-end software.

IATF 16949 Factory Quality

Every unit is produced under IATF 16949 automotive quality management, giving buyers documented process control and traceability. Read Why IATF 16949 Matters for EV Charging Equipment.

Technical Specifications

Parameter	Value
Parameter	Value
Product Model	C3-02-O01-Z32-S, C3-02-O03-Z16-S, C3-02-O03-Z32-S
Charging Pile Dimensions	360mm(L)*203mm(W)*100mm(H)
Charging Gun Dimensions	200mm(L)*70mm(W)*63mm(H)
Charging Pile Color	Magic Night Black
Charging Plug Type	Type 2 EU Standard
Input Frequency	60Hz
Operating Temperature	-30°C~+50°C
Protection Level	IP55
Charging Cable Length	Standard 5m (customizable length)
Installation Method	Wall-mounted / Pillar-mounted
Rated Voltage	Single-phase AC230V, Three-phase AC480V
Rated Current	32A, 32A
Rated Power	7.2kW, 22kW
Application Scenario	Personal, enterprise, real estate, etc.
Charging Mode	Standard: RFID Card Swipe Charging
Safety Design	Leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, short circuit protection

Application Scenarios

Commercial Car Parks & Workshops

For offices, garages and workshops needing reliable 7.2kW or 22kW charging, the Dianniu’s robust black housing withstands frequent daily use.

Fleet & Logistics Depots

Fleets returning to base overnight benefit from 22kW three-phase charging and RFID control that restricts use to authorised drivers.

Distributors & OEM Buyers

With single- and three-phase options and a durable build, the Dianniu is a strong mid-tier SKU for European distributors and private-label programmes.

Frequently Asked Questions

Q: What power options does the Dianniu EU offer? A: It offers a 7.2kW single-phase model (AC230V, 32A) and a 22kW three-phase model (AC480V, 32A).

Q: Which connector does it use? A: The Type 2 (IEC 62196-2) connector, the European EV standard.

Q: Is outdoor installation possible? A: Yes, the Dianniu EU is IP55 rated and operates from -30°C to +50°C, so sheltered outdoor use is fine.

Q: What are the MOQ, lead time and warranty terms? A: Orders begin at 50 units (own brand) or 100 units (OEM), lead time is 30–45 days, and each unit is backed by a 24-month warranty.

Request a Quote

Need a tougher, higher-power Type 2 charging point for commercial or fleet use? The Dianniu Series offers 7.2kW and 22kW options, a durable black enclosure and factory-direct pricing for European buyers.

For European bulk pricing and OEM/ODM enquiries, contact us at https://crevcc.com/contact-us-4/.
