| Parameter | Value |
|---|---|
| Parameter | Value |
| Product Model | CREVC-JT3G116, CREVC-JT3G132 |
| Charging Gun Dimensions | 237mm(L)*54mm(W)*65mm(H) |
| Control Box Dimensions | 235mm(L)*99mm(W)*52mm(H) |
| Charging Gun Color | Black |
| Charging Plug Type | Type 1 US Standard |
| Input Frequency | 50Hz/60Hz |
| Operating Temperature | -30°C~+50°C |
| Protection Level | IP65 (Control Box) |
| Total Product Length | 5m (customizable length) |
| Rated Voltage | Single-phase AC100-240V |
| Rated Current | 16A, 32A |
| Rated Power | 3.5kW, 7.0kW |
| Display Screen | No |
| Application Scenario | Personal on-board use |
| Charging Mode | Plug and Charge |
| Safety Design | Leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, short circuit protection |
Portable Chargers

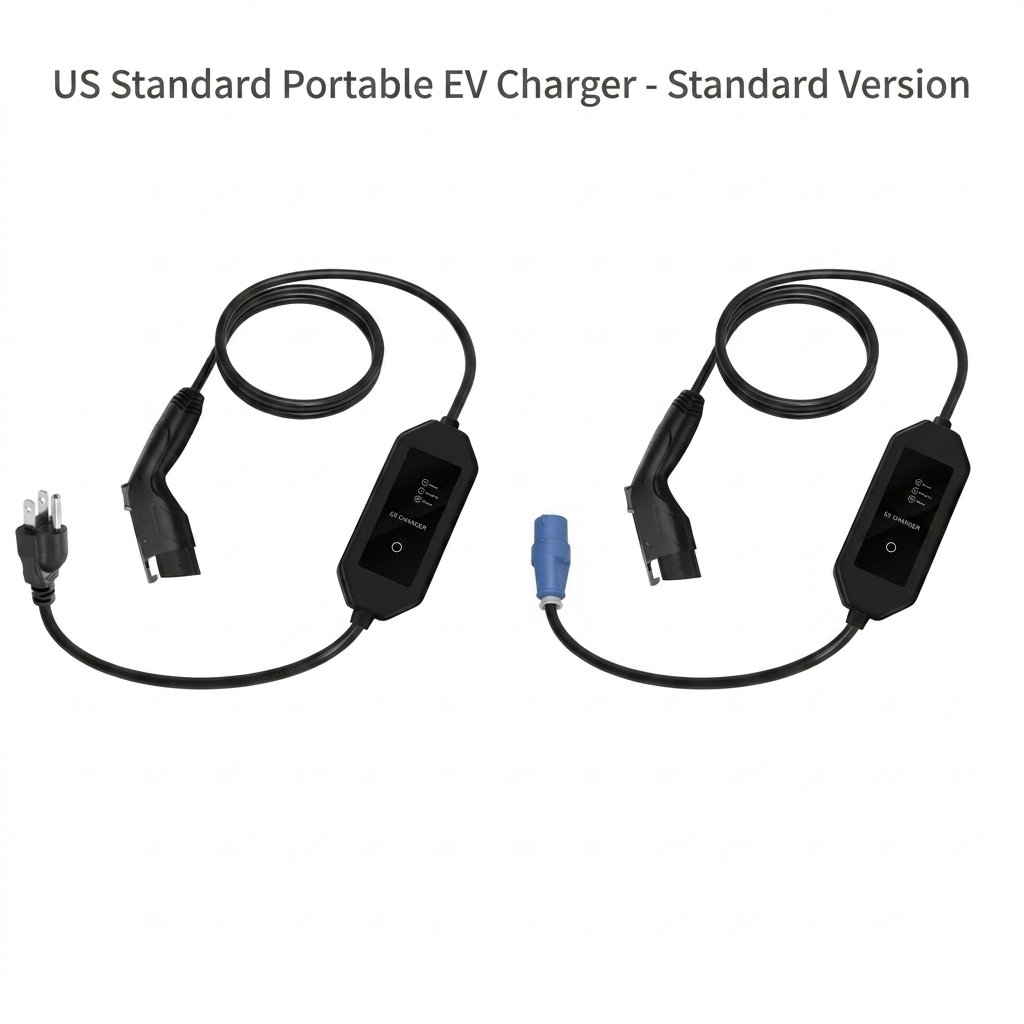

US Standard Portable Charger – Standard Version
CREVC-JT3G116, CREVC-JT3G132 | 16A, 32A current | 3.5kW, 7.0kW power
Sample
Placeholder text for Sample. Please contact us to request a sample of this product.
Warranty Policy
Placeholder text for Warranty Policy. All our premium EV charging products come with a 2-year warranty.
