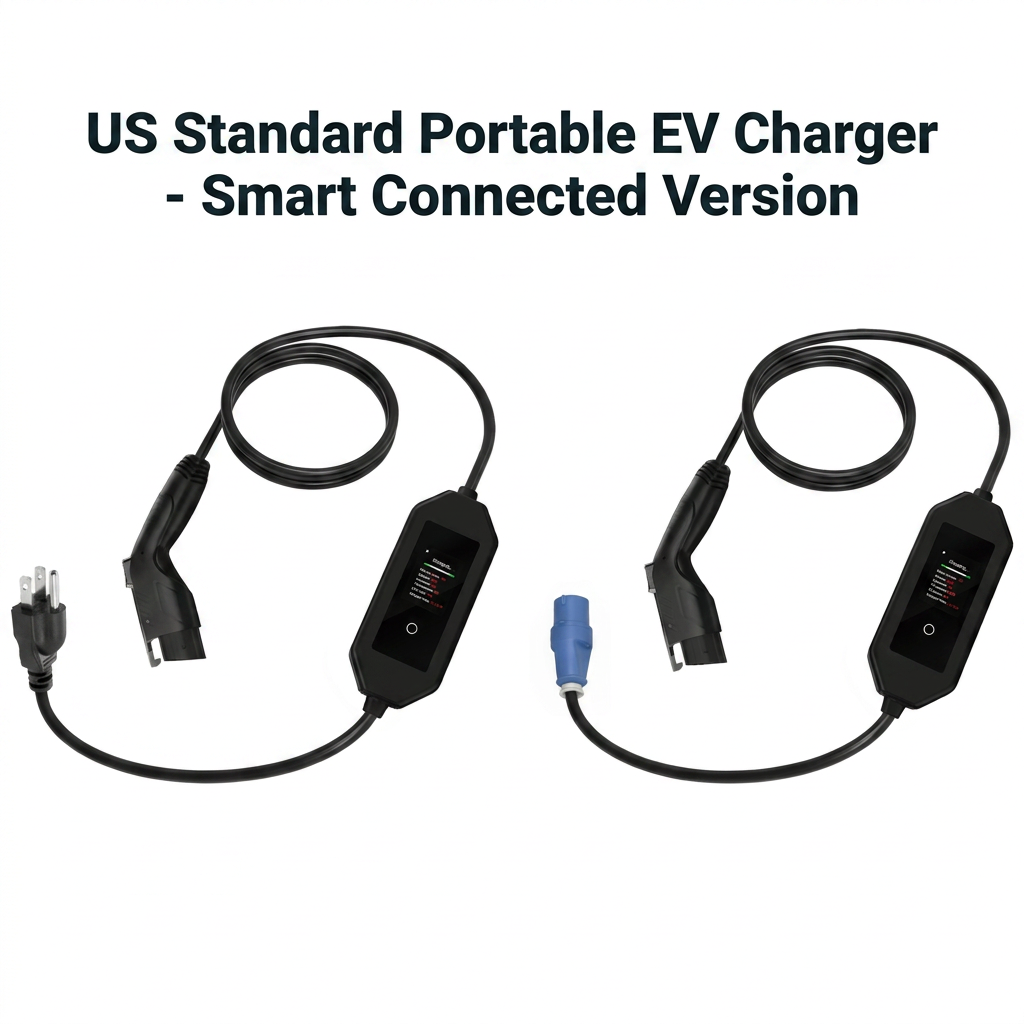

US Standard Portable Charger – Smart Connected

Product Overview

The US Standard Portable Charger – Smart Connected Version adds adjustable current, a display and reservation charging to a Type 1 (SAE J1772) portable charger. Drivers can dial the charging speed up or down to suit the circuit and schedule sessions for cheaper electricity, while keeping the flexibility of a wide-input travel unit.

The 16A (3.5kW, adjustable 8–16A) and 32A (7.0kW, adjustable 8–32A) variants run on single-phase AC100–240V. Built in our IATF 16949-certified Wenzhou factory around in-house PCB designs, the model is offered to distributors and OEM/ODM partners serving Type 1 vehicle markets.

Key Features & Advantages

Adjustable Current (8–16A / 8–32A)

Users can step the output down to match the available supply, with the 32A model adjustable from 8A to 32A and the 16A model from 8A to 16A. This is useful on shared or older circuits.

On-Device Display

A screen on the control box shows charging status and current settings, so the operator can confirm a session without any external device – convenient for fleets and shared installations.

Reservation Charging

Alongside plug-and-charge operation, the unit supports reservation charging so sessions can be scheduled for a chosen time. For related specification guidance, see our guide to IP ratings and cable length for portable chargers.

Type 1 Connector and Wide Input

The black Type 1 (SAE J1772) gun suits Type 1 vehicles, and the single-phase AC100–240V input covers both 110V and 230V supplies. A 5-metre cable is supplied as standard and can be customised for volume orders.

IP65 Control Box and Full Protection

The IP65 control box operates from -30°C to +50°C and carries eight-layer protection: leakage, overvoltage, undervoltage, overcurrent, grounding, overtemperature, emergency stop and short circuit.

Technical Specifications

Parameter	Value
Parameter	Value
Product Model	CREVC-JT2G116, CREVC-JT2G132
Charging Gun Dimensions	237mm(L)*54mm(W)*65mm(H)
Control Box Dimensions	235mm(L)*99mm(W)*52mm(H)
Charging Gun Color	Black
Charging Plug Type	Type 1 US Standard
Input Frequency	50Hz/60Hz
Operating Temperature	-30°C~+50°C
Protection Level	IP65 (Control Box)
Total Product Length	5m (customizable length)
Rated Voltage	Single-phase AC100-240V
Rated Current	16A (8-16A adjustable), 32A (8-32A adjustable)
Rated Power	3.5kW, 7.0kW
Display Screen	Yes
Application Scenario	Personal on-board use
Charging Mode	1. Plug and Charge 2. Reservation Charging
Safety Design	Leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, short circuit protection

Application Scenarios

Smart Home Charging

Households on time-of-use tariffs can schedule overnight sessions and reduce current when the supply is shared. The display keeps the active setting visible.

Fleet and Workplace Charging

Businesses issuing portable chargers to staff or drivers gain adjustable current and clear on-device status, with no network setup required.

Retail and Distribution Line-Up

Distributors can position this model above the Standard Version for customers wanting more control, while the Standard Version serves simpler plug-and-charge needs.

Frequently Asked Questions

Q: How is this different from the Standard Version? A: The Smart Connected Version adds adjustable current (8–16A / 8–32A), an on-device display and reservation charging. The Standard Version offers plug-and-charge only.

Q: Which vehicles and supplies does it support? A: It uses the Type 1 (SAE J1772) connector for Type 1 vehicles, and the single-phase AC100–240V input covers both 110V and 230V supplies.

Q: What are the MOQ, lead time and warranty? A: For OEM/private-label orders the MOQ is 100 units, and 50 units for branded CREVCC products. Lead time is typically 30–45 days, with a 24-month standard warranty.

Request a Quote

For distributors and fleet operators in Type 1 markets who want adjustable, schedulable charging, the US Standard Portable Charger – Smart Connected Version delivers added control at factory-direct pricing. Contact us with your target current rating and branding requirements for pricing and lead time.
