Product Overview
The Vision Series EU Standard AC Charging Pile — Basic Version is ChuangRui’s entry-level wall-mounted EV charging station, designed for commercial and residential installations across Europe. Available in 7.2kW (single-phase 32A) and 22kW (three-phase 32A) configurations, the Vision series delivers reliable, cost-effective AC charging without unnecessary frills — making it ideal for high-volume deployment projects where durability and value matter most.

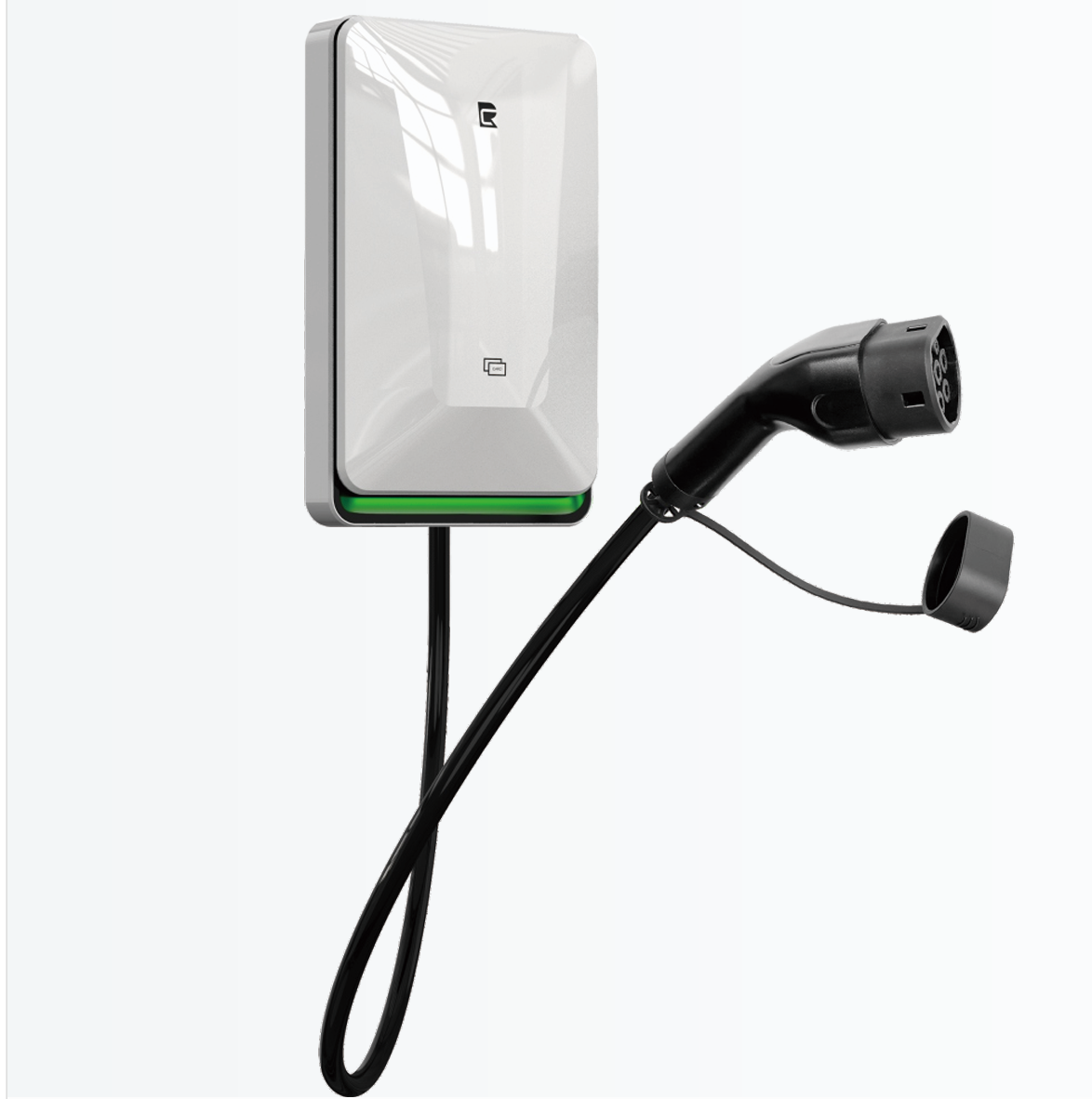

Featuring a sleek pure-white enclosure with compact 380×220×105mm dimensions, the Vision charging pile mounts cleanly on walls or pillars and integrates into any environment — from residential parking garages to commercial office buildings and retail locations. The basic version includes RFID card swipe activation, making it suitable for controlled-access installations such as apartment buildings, employee parking, and fleet depots.
Built in our IATF 16949-certified Wenzhou factory with a full suite of electrical safety protections and IP55 weatherproofing, the Vision series offers European B2B buyers a dependable, entry-priced charging station backed by ChuangRui’s in-house PCB engineering and direct factory support. For larger projects and OEM orders, we offer full customization including branding, networking features (OCPP, Wi-Fi), and payment integration.
Key Features & Advantages
1. 7.2kW to 22kW Power Range
Choose from 7.2kW single-phase (32A, 230V) for residential and light-commercial use, or 22kW three-phase (32A, 400V) for commercial parking, fleet depots, and public charging. Both models support the full range of European Type 2 EVs and PHEVs.
2. Type 2 Integrated Charging Cable
The Vision charging pile comes with an integrated Type 2 (IEC 62196-2) charging cable and connector — standard 5-meter length, customizable. The tethered cable design is preferred in commercial and multi-user settings because it eliminates the need for users to carry their own cable and prevents theft.
3. RFID Card Swipe Charging
The basic version uses RFID card authentication to start and stop charging sessions — a simple, reliable access control method ideal for apartment buildings, corporate parking, and fleet depots. Each station can be programmed with multiple RFID cards, and administration is straightforward without requiring network connectivity.
4. IP55 Weatherproof Enclosure
With IP55 dust-protected and water-jet-resistant construction, the Vision charging pile is designed for both indoor and outdoor installation. It operates reliably across the -30°C to +50°C temperature range — covering Nordic winters through Mediterranean summers across the European continent.
5. Wall-Mounted or Pillar-Mounted Installation
The compact form factor supports both wall mounting and pillar/pedestal mounting, giving installers flexibility for different site layouts. The lightweight enclosure and simple wiring design reduce installation time and cost — important factors for large-scale deployment projects with tight budgets.
6. 8-Layer Comprehensive Safety Protection
Every Vision charging pile integrates eight layers of electrical safety: leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, and short circuit protection. All safety circuits are designed and validated by our in-house engineering team.
7. In-House PCB Design & Manufacturing
The Vision’s control board, power monitoring circuits, and RFID module are all built on ChuangRui-designed PCBs manufactured in our own facility. This vertical integration means consistent quality, direct engineering support, and faster custom modifications — critical advantages for OEM clients and project-based buyers. Learn more in Why In-House PCB Design Matters for EV Charger Quality & Reliability.
8. IATF 16949 Certified Factory Quality
Every Vision charging pile is produced under IATF 16949 automotive quality management standards. For European B2B buyers — especially property managers, real estate developers, and charging network operators — this certification provides documented quality assurance, traceability, and process discipline that reduces long-term maintenance and warranty costs. Read more in Why IATF 16949 Matters for EV Charging Equipment.
Technical Specifications
| Parameter | Value |
|---|---|
| Product Models | CREVD-ENT2P132 (7.2kW 1P), CREVD-ENT2P316 (11kW 3P), CREVD-ENT2P332 (22kW 3P) |
| Charging Plug Type | Type 2 (IEC 62196-2) EU Standard, tethered cable |
| Rated Voltage | Single-phase AC 230V / Three-phase AC 400V |
| Rated Current | 32A (single-phase and three-phase models) |
| Rated Power | 7.2 kW (1P) / 11 kW (3P 16A) / 22 kW (3P) |
| Input Frequency | 50 / 60 Hz |
| Charging Cable Length | Standard 5m (customizable) |
| Charging Pile Dimensions | 380mm (L) × 220mm (W) × 105mm (H) |
| Charging Gun Dimensions | 200mm (L) × 70mm (W) × 63mm (H) |
| Charging Pile Color | Pure White (customizable for OEM) |
| Protection Level | IP55 |
| Operating Temperature | -30°C ~ +50°C |
| Installation Method | Wall-mounted / Pillar-mounted |
| Charging Mode (Basic Version) | RFID Card Swipe Charging |
| Safety Protections | Leakage, Overvoltage, Undervoltage, Overcurrent, Grounding, Overtemperature, Emergency Stop, Short Circuit |
| Certifications | CE, TUV, IATF 16949 (factory) |
Application Scenarios
Residential & Multi-Tenant Buildings
Across Europe, apartment buildings and housing cooperatives are installing EV charging infrastructure to meet tenant demand and regulatory requirements. The Vision basic version with RFID access control is a cost-effective solution for multi-tenant environments — each resident receives an RFID card, and charging sessions are authenticated by card swipe.
Corporate & Workplace Parking
Companies of all sizes are adding employee EV charging as a workplace benefit. The Vision series offers an affordable, reliable option for employee parking lots and corporate garages. RFID control ensures charging is limited to authorized employees, and the compact white enclosure blends seamlessly with professional environments.
Commercial Real Estate & Retail Parking
For shopping centers, supermarkets, hotels, and mixed-use developments, the Vision 22kW three-phase model provides fast AC charging for customers and visitors. The basic version can be deployed as standalone units or networked with OCPP (custom version) for integration with a central management platform. Learn about EU infrastructure trends in EU Injects €422 Million into EV Charging Infrastructure: What B2B Buyers Must Know.
Fleet Depots & Logistics Operators
Delivery fleets, logistics companies, and public transport operators need durable, high-utilization charging stations. The Vision series’ IP55 rating, wide temperature range, and 8-layer safety protection make it suitable for depot environments where equipment is heavily used and exposed to the elements.
EV Charger Distributors & Installers
For European EV charger distributors and electrical installation companies, the Vision basic version is a high-volume SKU with strong demand across residential, commercial, and industrial segments. ChuangRui offers bulk pricing, private-label branding, and supply-chain reliability backed by our Wenzhou factory. Explore the full EV Charging Piles product range.
Why Choose ChuangRui (CREVCC)
In-House PCB Design & Manufacturing
ChuangRui designs and builds its own PCB control boards — a level of vertical integration rare among entry-level charging station suppliers. For buyers, this means more reliable electronics, faster firmware updates, direct engineering support for custom projects, and complete transparency on component sourcing — no black-box modules from unknown third parties.
IATF 16949 Automotive Quality System
Our Wenzhou manufacturing facility is IATF 16949 certified — the gold standard for automotive quality management. Every Vision charging pile goes through the same rigorous in-line testing, documented process controls, and continuous improvement discipline required by global automakers. For European buyers, this translates to lower defect rates, longer service life, and reduced warranty exposure.
Full-Category OEM / ODM Capability
The Vision series is just one of many product lines in ChuangRui’s complete EV charging portfolio — from portable chargers and cables to wallbox piles and V2L discharge guns. Working with a single supplier across your entire product range simplifies certification management, consolidates quality assurance, and unlocks volume pricing advantages.
Wenzhou Factory with Direct Export
Based in Wenzhou, one of China’s most mature electrical manufacturing clusters, our factory benefits from a dense local supply chain and competitive component costs. As a direct manufacturer — not a trading company — we pass those savings to our B2B partners while maintaining full accountability for quality, delivery, and after-sales support. We also welcome factory audits by prospective clients.
Frequently Asked Questions
Q: What is the difference between the basic version and smart/networked versions?
A: The basic version uses RFID card swipe for access control and does not include Wi-Fi, cellular connectivity, or OCPP. It is ideal for installations where simple access control is sufficient and network management is not required. We also offer smart/networked versions with Wi-Fi, OCPP 1.6J support, and cloud-based management for deployments requiring remote monitoring and billing. Contact us for details on smart versions.
Q: What certifications does the Vision charging pile hold?
A: The EU models carry CE marking and TUV certification. Our manufacturing facility is IATF 16949 certified. For projects requiring MID certification for billing purposes or other regional certifications, please contact our sales team to discuss options for volume orders.
Q: Can the charging pile be installed outdoors?
A: Yes. The Vision series has IP55 protection rating — dust-protected and resistant to water jets — making it suitable for outdoor installation. The operating temperature range of -30°C to +50°C covers the vast majority of European climates. For extreme coastal or industrial environments, we recommend additional protective measures and can provide guidance on request.
Q: Is the charging cable replaceable if damaged?
A: Yes. The tethered Type 2 cable and connector can be replaced in the field if damaged, reducing maintenance cost compared to units where the cable is permanently sealed. We provide spare parts including cables, connectors, RFID cards, and control boards for installers and maintenance partners.
Q: What is the warranty period?
A: Standard manufacturer warranty is 24 months for OEM/B2B orders, covering defects in materials and workmanship. Extended warranty options are available for volume orders. We also provide technical support, spare parts, and firmware updates throughout the product lifecycle.
Q: What is the MOQ and lead time for bulk orders?
A: The standard MOQ for branded ChuangRui products is 50 units. For OEM/private-label orders with custom branding and features, the MOQ starts at 100 units. Standard lead time is 30–45 days depending on order size and configuration. For EU procurement compliance guidance, see EV Charging Equipment Procurement in the EU: A Compliance Checklist for 2026.
