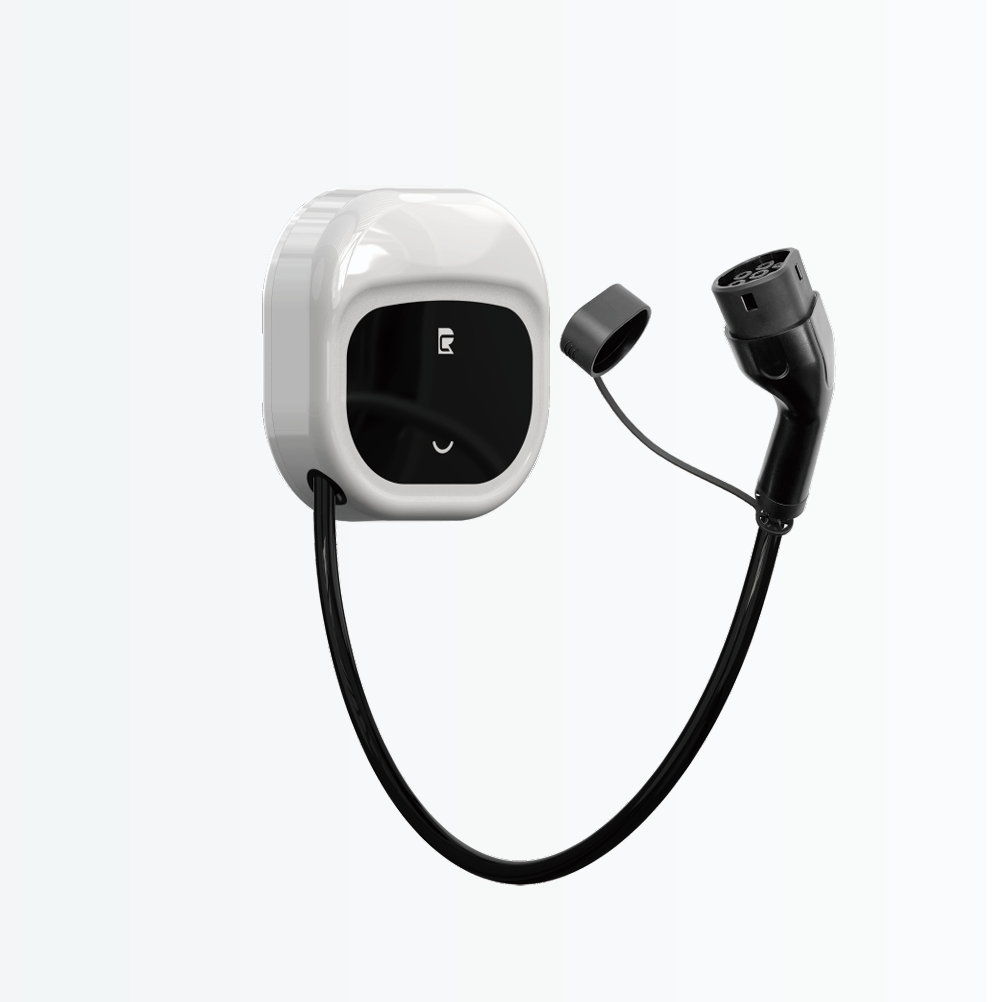

Mini EU Standard AC Charging Pile – Basic

Product Overview

The Mini Series EU Standard AC Charging Pile — Basic Version is the most compact wall-mounted charger in ChuangRui’s range for the European market. Offered in two model codes (CREVB-ENT2P116 and CREVB-ENT2P132), it provides 3.7kW or 7.2kW output at 16A or 32A on single-phase AC230V.

Aimed at homeowners, enterprises, real-estate projects and distributors, the Mini combines a small 220mm × 220mm × 65mm pure-white enclosure with a Type 2 (IEC 62196-2) connector and a standard 5m tethered cable. RFID card-swipe activation and eight electrical safety protections make it a practical, space-saving option, manufactured in our IATF 16949-certified Wenzhou factory.

Key Features & Advantages

Compact 220mm × 220mm × 65mm Enclosure

The slim pure-white housing fits narrow garages, carports and utility walls, and its low weight keeps handling and shipping costs down for bulk orders.

3.7kW or 7.2kW Single-Phase Output

Choose the 3.7kW (16A) or 7.2kW (32A) model, both single-phase AC230V at 60Hz, to suit residential or light-commercial charging. Our guide to Type 2 and CCS2 connectors explains how AC and DC connectors differ.

Type 2 (IEC 62196-2) Connector

The Mini uses the Type 2 connector standard for European EVs and PHEVs, with a standard 5m tethered cable. For EU procurement requirements, see our EV charging equipment procurement compliance checklist.

RFID Card-Swipe Activation

Sessions are authenticated by RFID card, a simple access-control method requiring no network, ideal for apartment buildings and shared charging.

In-House PCB & Eight Safety Protections

Every unit is built on a ChuangRui-designed control board with leakage, overvoltage, undervoltage, overcurrent, grounding, overtemperature, emergency-stop and short-circuit protection.

Technical Specifications

Parameter	Value
Parameter	Value
Product Model	CREVB-ENT2P116, CREVB-ENT2P132
Charging Pile Dimensions	220mm(L)*220mm(W)*65mm(H)
Charging Gun Dimensions	200mm(L)*70mm(W)*63mm(H)
Charging Pile Color	Pure White
Charging Plug Type	Type 2 EU Standard
Input Frequency	60Hz
Operating Temperature	-30°C~+50°C
Protection Level	IP55
Charging Cable Length	Standard 5m (customizable length)
Installation Method	Wall-mounted / Pillar-mounted
Rated Voltage	Single-phase AC230V
Rated Current	16A, 32A
Rated Power	3.7kW, 7.2kW
Application Scenario	Personal, enterprise, real estate, etc.
Charging Mode	Standard: RFID Card Swipe Charging
Safety Design	Leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, short circuit protection

Application Scenarios

Residential Garages & Carports

The 3.7kW model covers overnight charging for single-family homes and housing developments across Europe without major electrical upgrades.

Enterprise & Multi-Tenant Sites

The 7.2kW model with RFID control suits offices and apartment buildings needing shared, controlled charging.

Distributors & OEM Buyers

With two power options and a compact build, the Mini is a high-volume SKU for European distributors and private-label programmes.

Frequently Asked Questions

Q: What output options are available in the Mini EU? A: Two models: CREVB-ENT2P116 at 3.7kW/16A and CREVB-ENT2P132 at 7.2kW/32A, both single-phase AC230V.

Q: Which connector does the Mini EU carry? A: A Type 2 (IEC 62196-2) connector, the standard for European EVs.

Q: Is it suitable for outdoor installation? A: Yes, its IP55 rating and -30°C to +50°C range permit sheltered outdoor installation.

Q: What are the MOQ, lead time and warranty? A: MOQ is 50 units (own brand) or 100 units (OEM), standard lead time is 30–45 days, and every unit carries a 24-month warranty.

Request a Quote

For a compact Type 2 charging point suited to European homes and small sites, the Mini Series offers 3.7kW and 7.2kW options with card-based access control and factory-direct pricing.

Request bulk pricing, samples or OEM/ODM support at https://crevcc.com/contact-us-4/.
