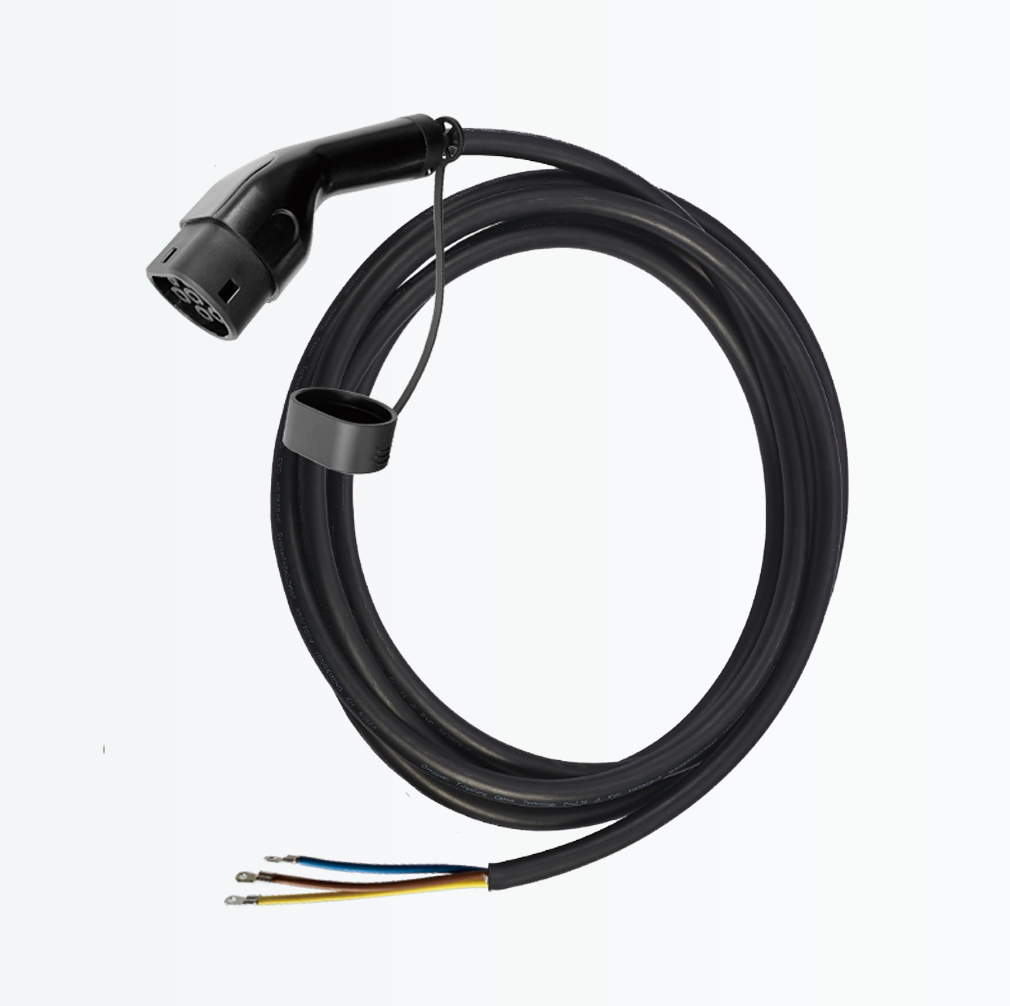

GB Standard AC Charging Gun Cable – Type 2

Product Overview

The GB Standard AC Charging Gun Cable — Type 2 is a tethered AC charging assembly built on the Chinese GB standard connector (GB/T 20234). It is supplied as a complete gun-and-cable unit for manufacturers, fleet operators, charging-station builders and distributors serving Chinese-standard electric vehicles, both in mainland China and in export markets where GB-equipped cars are registered.

Rated for 10A, 16A and 32A on a standard 5-metre cable, it handles 250V AC single-phase and 440V AC three-phase supplies — the higher three-phase voltage used by GB-standard installations. Each unit is assembled in our IATF 16949-certified Wenzhou factory with our own connector tooling and PCB engineering, so buyers receive consistent GB-standard geometry and factory-direct OEM/ODM support.

Key Features & Advantages

GB Standard (GB/T 20234) Connector

The gun follows the GB/T 20234 connector standard used by Chinese-market EVs, ensuring correct mating with GB vehicle inlets. Insertion and extraction force is kept below 100N for comfortable, repeatable plug-in.

10A, 16A and 32A Ratings

Three current options cover slow and fast AC charging, and the cable is rated for 250V AC single-phase or 440V AC three-phase operation. The 440V three-phase capability matches the GB-standard supply found in many Chinese commercial and fleet installations.

IP55 Sealed Fit, IP67 Gun Body

The gun-and-socket interface is sealed to IP55 and the gun body to IP67, protecting the connector against dust and water in outdoor and workshop environments. Insulation resistance exceeds 1000 MΩ.

Long Service Life and Flame Safety

The connector is rated for at least 10,000 mating cycles and its housing carries a UL94 V-0 flame-retardant rating, supporting safe, long-term operation in demanding fleet duty.

OEM / ODM Manufacturing

We build GB-standard cables to order with a MOQ of 50 units for our own brand and 100 units for OEM work, a standard lead time of 30–45 days and a 24-month warranty.

Technical Specifications

Parameter	Value
Parameter	Value
Rated Voltage	250V AC (Single-phase)/440V AC (Three-phase)
Rated Current	10A/16A/32A
Standard Cable Length	5m
Operating Ambient Temperature	-30~+50℃
Insertion and Extraction Force Requirement	<100N
Waterproof Level	IP55 (Gun and Socket Fit), IP67 (Gun Body)
Insulation Resistance	>1000 MΩ(1000V DC 5S)
Mechanical Lifespan	≥10000 cycles
Flame Retardant Rating	UL94 V-0

Application Scenarios

Chinese-Standard EV Fleets

Fleet operators running GB-equipped vehicles need charging cables that match the GB inlet exactly. This assembly provides the correct GB/T 20234 connection for depot and workshop charging, and it complements our GB Standard Charging Integrated Gun.

Charging Equipment Builders

Manufacturers assembling GB-standard AC charge points use the gun cable as a ready-made tethered output, avoiding the cost and risk of sourcing connectors separately.

Distributors in GB-Standard Markets

For distributors supplying Chinese-standard accessories, the cable is a high-turnover SKU backed by factory pricing. Understand the connector fundamentals in our guide to EV charging gun core technologies.

Frequently Asked Questions

Q: What connector standard does this cable use? A: It uses the Chinese GB standard connector (GB/T 20234), matching GB-standard vehicle inlets.

Q: Does it support three-phase charging? A: Yes. It is rated for 250V AC single-phase and 440V AC three-phase supplies.

Q: What is the standard length and can it be customised? A: The standard cable length is 5 metres; custom lengths are available for volume orders.

Q: What are the MOQ, lead time and warranty? A: For our own brand the minimum order is 50 units, rising to 100 units for OEM and private-label orders. We quote a 30–45 day lead time and back the cable with a 24-month warranty.

Request a Quote

Building GB-standard charging equipment or supplying a Chinese-standard vehicle market? We manufacture GB Standard AC Charging Gun Cables to order, with documented quality control and full OEM/ODM support.

Tell us your required current rating, cable length and volume and we will confirm pricing and delivery. Request a Quote and our engineers will respond within one working day.
