EU Standard AC Vehicle End Socket – Type 2

Product Overview

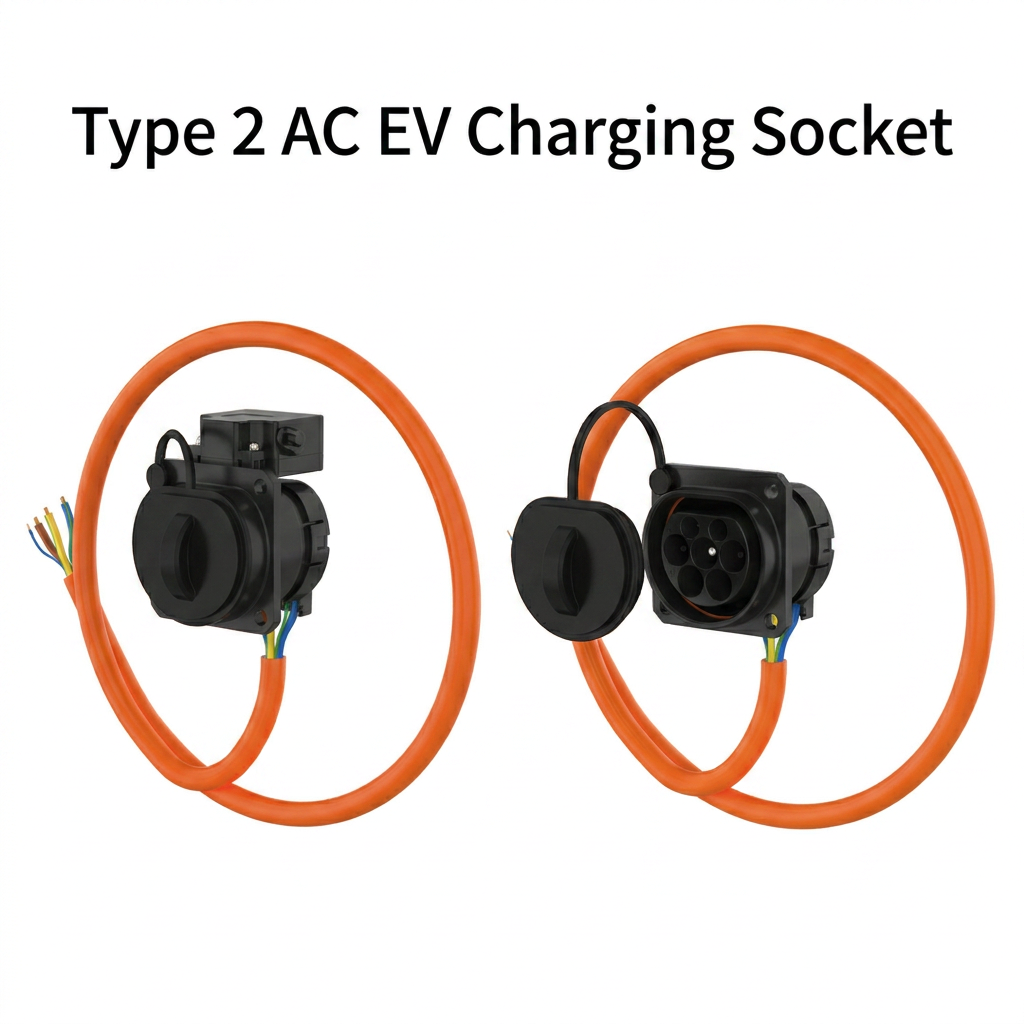

The EU Standard AC Vehicle End Socket — Type 2 is the vehicle-side inlet that receives a Type 2 (IEC 62196-2) charging connector on European electric vehicles and PHEVs. It is supplied to EV manufacturers, charging-equipment builders, harness assemblers and distributors as a complete, ready-to-install inlet rated for 16A at 230V AC.

The inlet combines a thermoplastic housing with silver-plated copper-alloy conductors and is available with an optional electronic lock for anti-theft and safety interlock functions. Produced in our IATF 16949-certified Wenzhou factory using in-house tooling, it gives OEM and ODM buyers a consistent Type 2 interface with factory-direct pricing and engineering support.

Key Features & Advantages

IEC 62196-2 Type 2 Interface

The inlet follows the Type 2 (IEC 62196-2) geometry used across Europe, so it accepts standard Type 2 charging connectors fitted to European charging cables and wallboxes. This keeps the vehicle compatible with the widest possible range of EU charging equipment.

16A, 230V AC Rating

The socket is rated for 16A at AC 230V single-phase, matching typical European domestic and light-commercial AC charging. The charging circuit carries 1P+N+PE+PP+CP conductors for full signalling support.

Silver-Plated Copper Contacts

Conductors are made from copper alloy with a silver-plated surface, keeping contact resistance low at 0.5 MΩ maximum for efficient power transfer. Insulation resistance exceeds 100 MΩ and the assembly withstands 2000V.

Optional Electronic Lock

The inlet can be supplied with an electronic lock, preventing unplugging during charging and deterring cable theft. This is valuable for public and semi-public charging installations where cables are left connected unattended.

Thermoplastic Housing, UL94 V-0

The housing is moulded from flame-retardant thermoplastic rated UL94 V-0, and the working interface is sealed to IP55. Insertion and extraction force stays within 90–100N, and the inlet operates from -30℃ to +50℃.

Technical Specifications

Parameter	Value
Parameter	Value
Model	CREV-CZ02C01-16A
Rated Current	16A
Rated Voltage	AC 230V
Insulation Resistance	> 100MΩ (DC1000V)
Contact Resistance	0.5 MΩ MAX
Withstand Voltage	2000V
Shell Fire Rating	UL94 V-0
Product Insertion and Extraction Force	≤90-100N
Protection Level	IP55 (Working Status)
Housing	Thermoplastic
Conductor	Copper Alloy, Silver-plated Surface
Operating Ambient Temperature	-30℃ ~ +50℃
Charging Cable	1P+N+PE+PP+CP
Specified Functions	Available with electronic lock

Application Scenarios

EV Charging Inlet Assemblies

Vehicle and harness manufacturers fit the socket as the standard charging inlet on Type 2 vehicles. Its silver-plated contacts and IP55 sealing support reliable daily charging across the vehicle’s service life.

Wallbox and Cable Builders

Equipment builders designing Type 2 products use the inlet as a matched counterpart to Type 2 charging guns, simplifying component sourcing and fit verification. Pair it with our EU Standard AC Charging Gun Cable for a complete connection set.

Public Charging Installations

In semi-public installations where cable theft is a concern, the electronic-lock option secures the connection. The UL94 V-0 housing adds a further layer of fire safety. Read how Type 2 compares with CCS2 in our buyer’s technical comparison.

Frequently Asked Questions

Q: Which connector standard does this inlet use? A: It uses the Type 2 (IEC 62196-2) interface standard used throughout Europe.

Q: Is an electronic lock available? A: Yes. The socket is available with an optional electronic lock for anti-theft and charging interlock.

Q: What is the current and voltage rating? A: It is rated for 16A at AC 230V single-phase.

Q: What are the MOQ, lead time and warranty? A: MOQ is 50 units for our own brand and 100 for OEM, standard lead time is 30–45 days, and the warranty is 24 months.

Request a Quote

Sourcing a Type 2 vehicle end socket for an inlet assembly, a charging product or a distribution range? We produce EU Standard AC Vehicle End Sockets in-house with silver-plated contacts, flame-retardant housings and optional electronic locking.

Share your rating, locking requirement and order volume and we will confirm pricing and lead time. Request a Quote or ask our engineers for samples.
