EU Standard AC Charging Gun Cable – Type 2

Product Overview

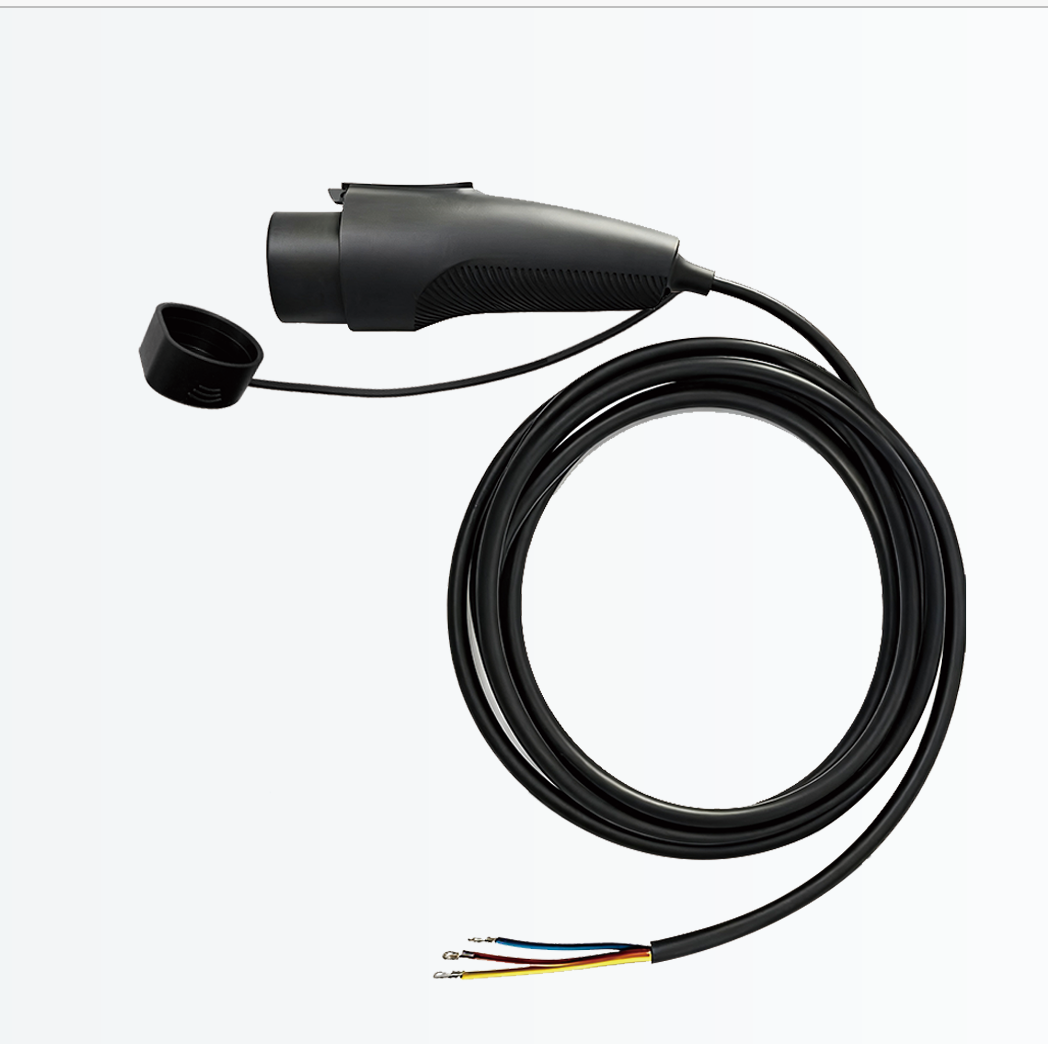

The EU Standard AC Charging Gun Cable — Type 2 is a tethered AC charging assembly built around the IEC 62196-2 Type 2 connector — the interface that equips the majority of electric vehicles sold across continental Europe. It is supplied as a complete gun-and-cable unit for wallbox makers, charging-station integrators and distributors who need a dependable Type 2 connector.

Available with 10A, 13A, 16A and 32A current ratings on a standard 5-metre cable, the assembly suits both single-phase 250V and three-phase 400V AC supplies, covering everything from a domestic wallbox to a public AC charge point. Each unit is produced in our IATF 16949-certified Wenzhou factory using our own tooling and in-house PCB engineering, giving buyers consistent fit and direct factory support for private-label programmes.

Key Features & Advantages

IEC 62196-2 Type 2 Interface

The gun is engineered to the Type 2 (IEC 62196-2) geometry used throughout the EU, so it mates correctly with the standard vehicle inlet found on European EVs and PHEVs. Insertion and extraction force is held below 100N for a firm, repeatable connection.

10A to 32A Current Flexibility

One assembly platform covers 10A, 13A, 16A and 32A ratings, letting distributors serve several power classes from a single supplier. The cable is rated for 250V AC single-phase or 400V AC three-phase operation.

IP55 Sealed Fit, IP67 Gun Body

The gun-and-socket interface is sealed to IP55 and the gun body itself to IP67, protecting the assembly against dust and water ingress in real-world installations. This makes the cable suitable for outdoor wallboxes and public AC charging points exposed to rain and dust.

10,000-Cycle Mechanical Life

Rated for at least 10,000 mating cycles, the connector is built for daily plug-in use over many years. Insulation resistance exceeds 1000 MΩ, and the housing carries a UL94 V-0 flame-retardant rating for additional fire safety.

Factory-Direct OEM & ODM

As the manufacturer, we offer private-label and customised variants with a MOQ of 50 units for our own brand and 100 units for OEM orders. Standard lead time is 30–45 days and every unit carries a 24-month warranty.

Technical Specifications

Parameter	Value
Parameter	Value
Rated Voltage	250V AC (Single-phase)/400V AC (Three-phase)
Rated Current	10A/13A/16A/32A
Standard Cable Length	5m
Operating Ambient Temperature	-30~+50℃
Insertion and Extraction Force Requirement	<100N
Waterproof Level	IP55 (Gun and Socket Fit), IP67 (Gun Body)
Insulation Resistance	>1000 MΩ(1000V DC 5S)
Mechanical Lifespan	≥10000 cycles
Flame Retardant Rating	UL94 V-0

Application Scenarios

Wallbox & Home Charging

Residential wallbox manufacturers use the Type 2 gun cable as the tethered output of a home charger, typically paired with a matching EU Standard AC Vehicle End Socket. The 5-metre length reaches comfortably across a driveway, and the IP67 gun body stands up to outdoor parking.

Public AC Charging Points

For destination chargers at hotels, retail parks and workplaces, the assembly provides a durable Type 2 connection rated for frequent daily use. Its sealed interface and 10,000-cycle life reduce field failures and maintenance call-outs.

Distributors & Cable Assemblers

Buyers assembling their own charging cables or reselling Type 2 accessories value the consistent connector quality and factory pricing. Learn what to check when qualifying a supplier in our EV charging cable factory audit checklist.

Frequently Asked Questions

Q: Is this cable suitable for three-phase 400V charging? A: Yes. The assembly is rated for both 250V AC single-phase and 400V AC three-phase supplies, so it works with single-phase and three-phase European installations alike.

Q: What is the standard cable length, and can it be customised? A: The standard length is 5 metres. Custom lengths are available for volume OEM and private-label orders.

Q: How is the connector protected against water and dust? A: The gun-and-socket fit is sealed to IP55 and the gun body to IP67, so the assembly tolerates outdoor and dusty environments.

Q: What are the MOQ, lead time and warranty? A: The MOQ is 50 units for our own brand and 100 units for OEM orders, standard lead time is 30–45 days, and the product carries a 24-month warranty.

Request a Quote

Sourcing a Type 2 charging gun cable for a wallbox range, a public AC charging project or a distribution catalogue? We supply EU Standard AC Charging Gun Cables directly from our Wenzhou factory with documented quality control and flexible OEM/ODM terms.

Send us your target current rating, cable length and order volume, and our engineers will confirm pricing and lead time. Request a Quote or contact our team for a full product catalogue.
