Vision US Standard AC Charging Pile – Basic

Product Overview

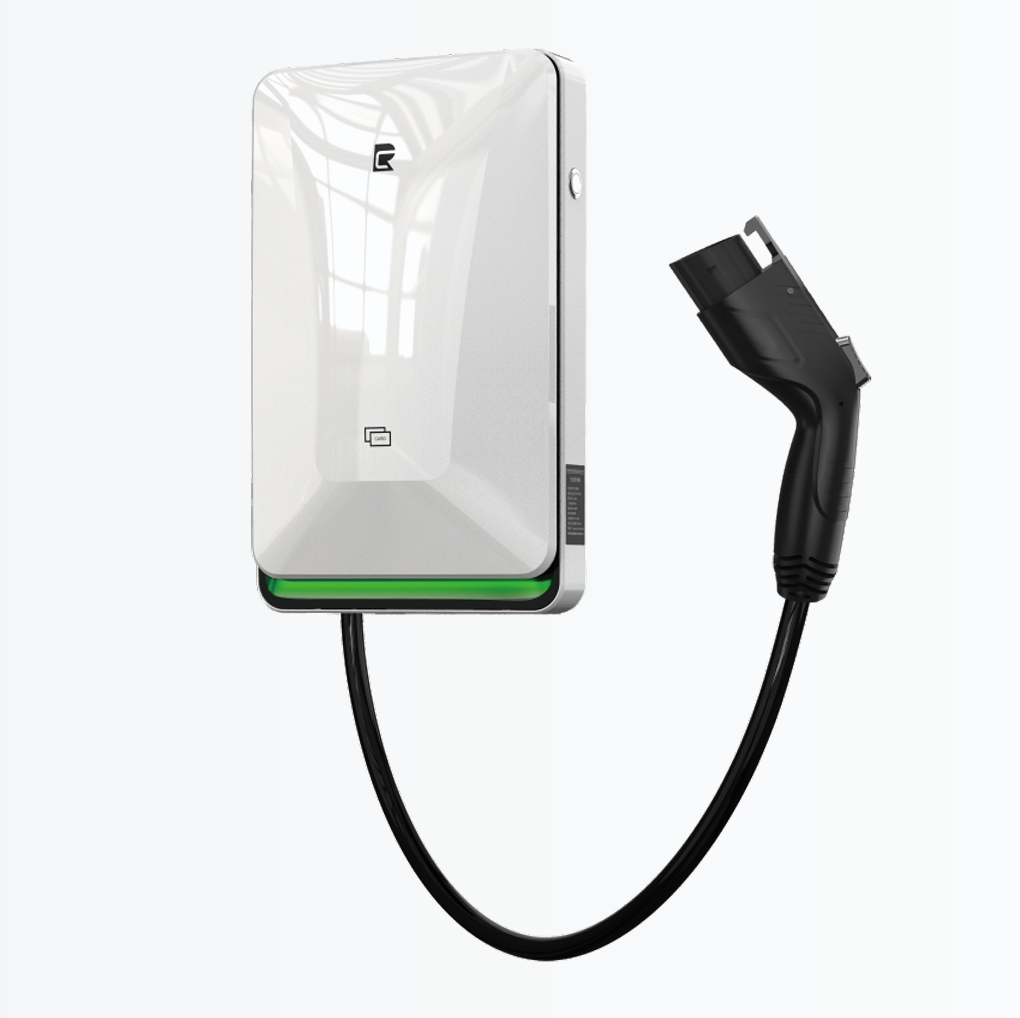

The Vision Series US Standard AC Charging Pile — Basic Version is ChuangRui’s minimalist commercial wallbox for North America, offered in three model codes (CREVD-JT2B132, CREVD-JT2B316 and CREVD-JT2B332) and rated at 7kW and 32A on a single-phase AC100-240V supply.

With a clean pure-white 380mm × 220mm × 105mm enclosure, the Vision is designed for sites where appearance and reliability matter, such as apartment buildings, offices and retail car parks. It uses a Type 1 (SAE J1772) connector, a standard 5m tethered cable, RFID card-swipe activation and eight electrical safety protections, and is built in our IATF 16949-certified Wenzhou factory.

Key Features & Advantages

Slim Pure-White Commercial Design

The 380mm × 220mm × 105mm pure-white housing gives the Vision a discreet, professional look that suits apartment lobbies, office car parks and retail sites. Its clean lines help the unit blend into finished environments.

7kW / 32A Single-Phase Output

Rated 7kW at 32A on AC100-240V, 50/60Hz, the Vision delivers fast single-phase charging for daily drivers, with three model codes covering different project requirements.

Type 1 (SAE J1772) Connector Standard

The Vision uses the Type 1 connector standard common in North America, so it is compatible with the vehicles your customers drive. Our global connector standards guide explains the standard in detail.

RFID Card-Swipe Activation

Access is controlled by RFID card, allowing property managers and employers to limit charging to authorised users without any network infrastructure.

IATF 16949 Factory Quality

Every Vision unit is produced under IATF 16949 automotive quality management, giving buyers documented process control and traceability. Read Why IATF 16949 Matters for EV Charging Equipment.

Technical Specifications

Parameter	Value
Parameter	Value
Product Model	CREVD-JT2B132, CREVD-JT2B316, CREVD-JT2B332
Charging Pile Dimensions	380mm(L)*220mm(W)*105mm(H)
Charging Gun Dimensions	237mm(L)*54mm(W)*65mm(H)
Charging Pile Color	Pure White
Charging Plug Type	Type 1 US Standard
Input Frequency	50Hz/60Hz
Operating Temperature	-30°C~+50°C
Protection Level	IP55
Charging Cable Length	Standard 5m (customizable length)
Installation Method	Wall-mounted / Pillar-mounted
Rated Voltage	AC100-240V
Rated Current	32A
Rated Power	7kW
Application Scenario	Personal, enterprise, real estate, etc.
Charging Mode	Standard: RFID Card Swipe Charging
Safety Design	Leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, short circuit protection

Application Scenarios

Apartment & Multi-Tenant Buildings

Property managers can issue RFID cards to residents, giving controlled access to shared charging through a tidy, unobtrusive unit.

Offices & Workplace Parking

Employers adding EV charging as a staff benefit gain 7kW charging and card-based access control in a presentable white enclosure.

Distributors & Installers

As a well-presented, commercial-grade SKU, the Vision suits installers and distributors serving the North American market.

Frequently Asked Questions

Q: Which model codes make up the Vision US series? A: The series includes CREVD-JT2B132, CREVD-JT2B316 and CREVD-JT2B332, all rated 7kW/32A on single-phase AC100-240V.

Q: Which connector does the Vision US use? A: It uses the Type 1 (SAE J1772) connector, standard across North America.

Q: Is outdoor mounting supported? A: Yes — the unit is IP55 rated and operates from -30°C to +50°C, suitable for sheltered outdoor installation.

Q: What is the minimum order and lead time? A: The MOQ is 50 units (own brand) or 100 units (OEM), lead time is 30–45 days, and all units carry a 24-month warranty.

Request a Quote

For commercial sites that need a presentable, reliable 7kW Type 1 charging point, the Vision Series combines a slim white design with card-based access control and factory-direct pricing.

Send your requirements to https://crevcc.com/contact-us-4/ for bulk pricing, samples and OEM/ODM options.
