Mini US Standard AC Charging Pile – Basic

Product Overview

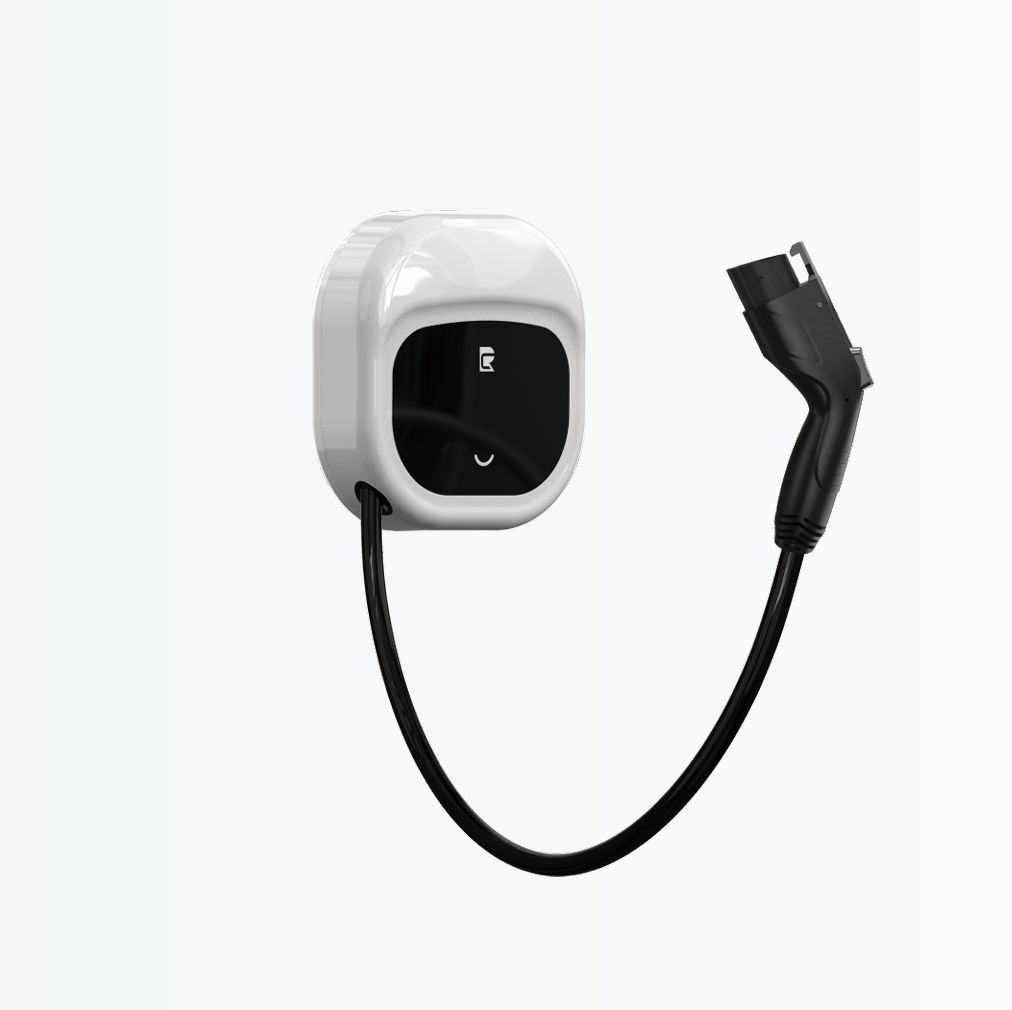

The Mini Series US Standard AC Charging Pile — Basic Version is the most compact wall-mounted charger in ChuangRui’s AC pile range, engineered for North American single-phase power. Rated at 3.5kW and 16A (AC100-240V, 50/60Hz), it pairs a small 220mm × 220mm × 65mm pure-white enclosure with a Type 1 (SAE J1772) connector and a standard 5m tethered cable.

This entry-level model is built for homeowners, residential developers, property managers and distributors who need a reliable, space-saving charging point at an accessible price. RFID card-swipe activation, eight electrical safety protections and flexible wall- or pillar-mounting make the Mini a practical, high-volume SKU for the North American market, produced in our IATF 16949-certified Wenzhou factory.

Key Features & Advantages

Compact 220mm × 220mm × 65mm Enclosure

The Mini’s slim pure-white housing is the smallest in the AC pile line-up, letting installers fit charging points into narrow garages, carports and utility walls where larger units will not go. Its low weight also helps keep handling and shipping costs down on bulk orders.

3.5kW / 16A Single-Phase Output

With a 3.5kW rating at 16A and an AC100-240V, 50/60Hz input, the Mini delivers dependable overnight charging for most North American EVs and PHEVs. Buyers comparing power levels can read our guide on choosing between 16A and 32A how to choose the right power level for your market.

Type 1 (SAE J1772) Connector Standard

The Mini uses the Type 1 connector standard adopted across North America, so it works with the vehicles your customers already drive. Our overview of global connector standards explains how Type 1 compares with Type 2 in our global connector standards guide.

RFID Card-Swipe Activation

The basic version authenticates charging sessions by RFID card — a simple access-control method that needs no network connection. It suits apartment blocks, employee parking and shared residential charging where control without connectivity is preferred.

In-House PCB & Eight Safety Protections

Every Mini is built on a ChuangRui-designed control board and includes leakage, overvoltage, undervoltage, overcurrent, grounding, overtemperature, emergency-stop and short-circuit protection. Browse the full EV Charging Piles range for related models.

Technical Specifications

Parameter	Value
Parameter	Value
Product Model	CREVB-JT2P116, CREVB-JT2P132
Charging Pile Dimensions	220mm(L)*220mm(W)*65mm(H)
Charging Gun Dimensions	237mm(L)*54mm(W)*65mm(H)
Charging Pile Color	Pure White
Charging Plug Type	Type 1 US Standard
Input Frequency	50Hz/60Hz
Operating Temperature	-30°C~+50°C
Protection Level	IP55
Charging Cable Length	Standard 5m (customizable length)
Installation Method	Wall-mounted / Pillar-mounted
Rated Voltage	AC100-240V
Rated Current	16A
Rated Power	3.5kW
Application Scenario	Personal, enterprise, real estate, etc.
Charging Mode	Standard: RFID Card Swipe Charging
Safety Design	Leakage protection, overvoltage protection, undervoltage protection, overcurrent protection, grounding protection, overtemperature protection, emergency stop protection, short circuit protection

Application Scenarios

Residential Garages & Carports

For single-family homes and housing developments, the Mini’s compact footprint and 3.5kW output cover daily charging needs without major electrical upgrades.

Small Commercial & Fleet Sites

Offices, workshops and light fleet depots can deploy several Mini units at low cost, using RFID cards to control access to each charging point.

Distributors & OEM Buyers

As an entry-priced, high-turnover product, the Mini is well suited to distributors and private-label programmes across North America.

Frequently Asked Questions

Q: Which connector standard does the Mini US use? A: It uses the Type 1 (SAE J1772) standard, the common AC connector for North American vehicles.

Q: Is the Mini suitable for outdoor installation? A: Yes. Its IP55 rating and -30°C to +50°C operating range allow sheltered outdoor use.

Q: Can I use the Mini on a three-phase supply? A: No — this model is single-phase only (AC100-240V, 16A, 3.5kW). Please contact us for higher-power or three-phase requirements.

Q: What are the order terms? A: The MOQ is 50 units for our own brand and 100 units for OEM/private-label orders, with a standard lead time of 30–45 days and a 24-month warranty.

Request a Quote

Looking for a compact, cost-effective Type 1 charging point for the North American market? The Mini Series combines a small footprint, dependable 3.5kW charging and factory-direct pricing for distributors, installers and developers.

Contact us at https://crevcc.com/contact-us-4/ for bulk pricing, samples and OEM/ODM options.
